QUESTION 20
Which three statements are typical characteristics of VLAN arrangements? (Choose three.)
A. A new switch has no VLANs configured.
B. Connectivity between VLANs requires a Layer 3 device.
C. VLANs typically decrease the number of collision domains. D. Each VLAN uses a separate address space.
E. A switch maintains a separate bridging table for each VLAN. F. VLANs cannot span multiple switches.
Answer: BDE
Section: Chapter 10: VLAN
Explanation/Reference:
QUESTION 21
Refer to the exhibit. Which three statements are true about how router JAX will choose a path to the 10.1.3.0/24 network when different routing protocols are configured? (Choose three.)
A. By default, if RIPv2 is the routing protocol, only the path JAX-ORL will be installed into the routing table. B. The equal cost paths JAX-CHI-ORL and JAX- NY-ORL will be installed in the routing table if RIPv2 is the
routing protocol.
C. When EIGRP is the routing protocol, only the path JAX-ORL will be installed in the routing table by default. D. When EIGRP is the routing protocol, the equal cost paths JAX-CHI-ORL, and JAX-NY-ORL will be installed
in the routing table by default.
E. With EIGRP and OSPF both running on the network with their default configurations, the EIGRP paths will be installed in the routing table.
F. The OSPF paths will be installed in the routing table, if EIGRP and OSPF are both running on the network with their default configurations.
Answer: ADE
Section: Chapter 6: IP Routing
Explanation/Reference:
QUESTION 22
Refer to the exhibit. Which three statements correctly describe Network Device A? (Choose three.)
A. With a network wide mask of 255.255.255.128, each interface does not require an IP address.
B. With a network wide mask of 255.255.255.128, each interface does require an IP address on a unique IP
subnet.
C. With a network wide mask of 255.255.255.0, must be a Layer 2 device for the PCs to communicate with each other.
D. With a network wide mask of 255.255.255.0, must be a Layer 3 device for the PCs to communicate with each other.
E. With a network wide mask of 255.255.254.0, each interface does not require an IP address.
Answer: BDE
Section: Chapter 6: IP Routing
Explanation/Reference:
QUESTION 23
Switch ports operating in which two roles will forward traffic according to the IEEE 802.1w standard? (Choose two.)
A. alternate
B. backup
C. designated
D. disabled
E. root
Answer: CE
Section: Chapter 9: Switching
Explanation/Reference:
QUESTION 24

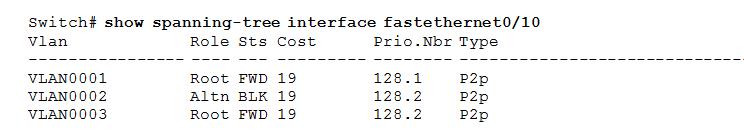

Refer to the exhibit. Given the output shown from this Cisco Catalyst 2950, what is the most likely reason that interface FastEthernet 0/10 is not the root port for VLAN 2?
A. This switch has more than one interface connected to the root network segment in VLAN 2.
B. This switch is running RSTP while the elected designated switch is running 802.1d Spanning Tree. C. This switch interface has a higher path cost to the root bridge than another in the topology.
D. This switch has a lower bridge ID for VLAN 2 than the elected designated switch.
Answer: C
Section: Chapter 9: Switching
Explanation/Reference:
QUESTION 25
Refer to the exhibit. The network administrator must establish a route by which London workstations can forward traffic to the Manchester workstations. What is the simplest way to accomplish this?
A. Configure a dynamic routing protocol on London to advertise all routes to Manchester.
B. Configure a dynamic routing protocol on London to advertise summarized routes to Manchester.
C. Configure a dynamic routing protocol on Manchester to advertise a default route to the London router. D. Configure a static default route on London with a next hop of 10.1.1.1.
E. Configure a static route on London to direct all traffic destined for 172.16.0.0/22 to 10.1.1.2. F. Configure Manchester to advertise a static default route to London.
Answer: E
Section: Chapter 6: IP Routing
Explanation/Reference:
QUESTION 26
Refer to the exhibit. This command is executed on 2960Switch:
2960Switch(config)# mac-address-table static 0000.00aa.aaaa vlan 10 interface fa0/1
Which two of these statements correctly identify results of executing the command? (Choose two.)
A. Port security is implemented on the fa0/1 interface.
B. MAC address 0000.00aa.aaaa does not need to be learned by this switch.
C. Only MAC address 0000.00aa.aaaa can source frames on the fa0/1 segment.
D. Frames with a Layer 2 source address of 0000.00aa.aaaa will be forwarded out fa0/1.
E. MAC address 0000.00aa.aaaa will be listed in the MAC address table for interface fa0/1 only.
Answer: BE
Section: Chapter 9: Switching
Explanation/Reference:
QUESTION 27
Which of the following describes the roles of devices in a WAN? (Choose three.)
A. A CSU/DSU terminates a digital local loop. B. A modem terminates a digital local loop.
C. A CSU/DSU terminates an analog local loop. D. A modem terminates an analog local loop.
E. A router is commonly considered a DTE device.
F. A router is commonly considered a DCE device.
Answer: ADE
Section: Chapter 14: Wide Area Network (WAN)
Explanation/Reference:
QUESTION 28
What are two characteristics of Telnet? (Choose two.)
A. It sends data in clear text format.
B. It is no longer supported on Cisco network devices. C. It is more secure than SSH.
D. It requires an enterprise license in order to be implemented.
E. It requires that the destination device be configured to support Telnet connections.
Answer: AE
Section: Chapter 2: TCP/IP
Explanation/Reference:
QUESTION 29
What are two security appliances that can be installed in a network? (Choose two.)
A. ATM B. IDS C. IOS D. IOX E. IPS F. SDM
Answer: BE
Section: Chapter 7: Security
Explanation/Reference:
